To avoid skips we typically overlap the cutterbar into the previous pass by a small amount. How much is this well-manicured landscape costing you in lost productivity?
Precise steering so you achieve full cut width on every pass would make you more productive.
On the other hand, driving at maximum cutting width can be a tiresome chore. Could automatic steering give us the break we need while maximizing the cutting width of the mower?
These are some of the questions we set out to answer two seasons ago.
We approached the problem in two ways. First, we conducted an experiment at the UW-Madison’s Arlington Agricultural Research Station to better understand what factors influenced how much we overlap.
Second, we hit the road, observing farms and custom operators across the state to see how folks were driving.
In the controlled experiment we tested how driver experience and cutting speed influenced the amount of overlap.
The cutting speeds tested were 4, 6 and 8 miles per hour (mph). The experienced driver had been cutting at the research farm for over five years and the second driver was new to the job.
We conducted the experiment in first and second cutting with the farm’s donated self-propelled windrower with a disk cutterbar (thanks to John Deere Ottumwa Works).
Our findings: surprisingly, speed didn’t play much of a role in overlap and neither did experience.
However, the experiment did find that when the two factors interacted, particularly high speeds and low experience levels, the overlap loss increased.
The second part of the experiment proved to be even more interesting. Here we measured pass-to-pass overlap on 15 farms.
The machines included pull-type, mounted and self-propelled mowers with operating widths varying from 10 feet to 32 feet. The operating speeds varied from 5.5 to 12.5 mph.
The overlap varied from 0.5 to 16 percent with the average around 5 percent. That’s 5 percent of the cutting width wasted with each pass.
On a 14-foot mower that’s about eight inches per pass. Overlap averaged slightly higher for the pull-type at 6.6 percent than for the mounted and self-propelled machines at 5.2 and 5.0 percent, respectively.
The other interesting fact gleaned from the study was that machines utilizing automatic steering with SF2 or OmniSTAR HP signal correction were able to cut overlap in half from 5 to 2.5 percent in the machines we observed.
But could cutting overlap from 5 to 2.5 percent pay for the hardware needed for automatic steering? Well, the usual response of “it depends” applies. If you cover enough acres, the answer is yes. If you can’t pay for the system by mowing hay you’ll have to come up with other applications to spread the cost.
Tillage, spraying and seeding would all be good candidates. I’ve compiled a chart based on the numbers using USDA NASS’s 2007 custom rate survey if you’d like to look at the payback on just using the system in mowing. FG
—Excerpts from University of Wisconsin Integrated Pest and Crop Management newsletter
PHOTOS
Photo courtesy of University of Wisconsin

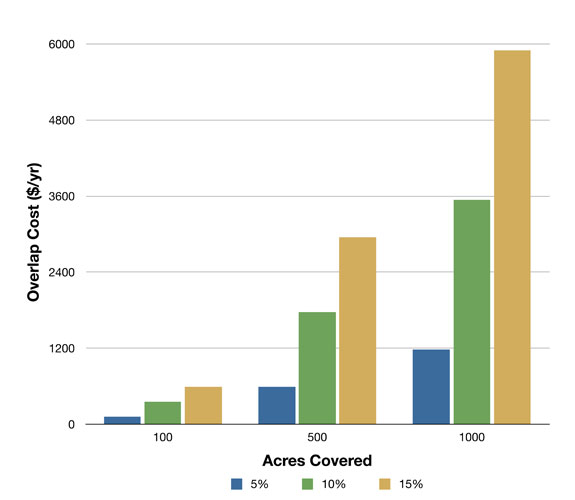

FIGURE 1: Savings using automatic steering in mowing for 100, 500 and 1000 acres of crop harvested four times annually. Based on our research overlap with guidance is reduced to 2.5 percent of cutting width. Therefore, overlap is reduced from 5, 10 and 15 percent to 2.5, 7.5 and 12.5 percent for the blue, green and brown bars, respectively.
Matthew Digman
Assistant Professor
University of Wisconsin
